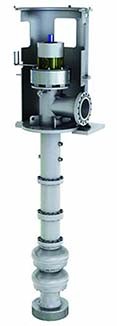

Molten Salt Pump

The VEY is a vertical multi-stage pump type, suitable for working conditions with large flow rates and medium to high heads. It features mature and complete hydraulic design, with comprehensive consideration of high efficiency, low submersion depth, and low required net positive suction head (NPSHr) during the design process. The VEY pump type is mainly applied in:

Cold and hot molten salt circulation pumps for trough-type solar thermal power plants

·High-pressure cold molten salt pumps for tower-type solar thermal power plants

·Hot molten salt circulation pumps for tower-type solar thermal power plants

·Temperature-regulating molten salt pumps for tower-type solar thermal power plants

· Salt melting pumps and salt discharge pumps for both trough-type and tower-type solar thermal power plants

Flow rate: up to 3200 m3/h

Head: up to 400 m

Working pressure: up to 10 MPa

Temperature: up to 600℃
